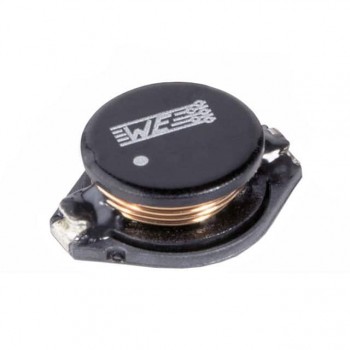

| Series | WE-PD |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 210 mA |
| Current - Saturation (Isat) | 200mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.5Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2.8MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
