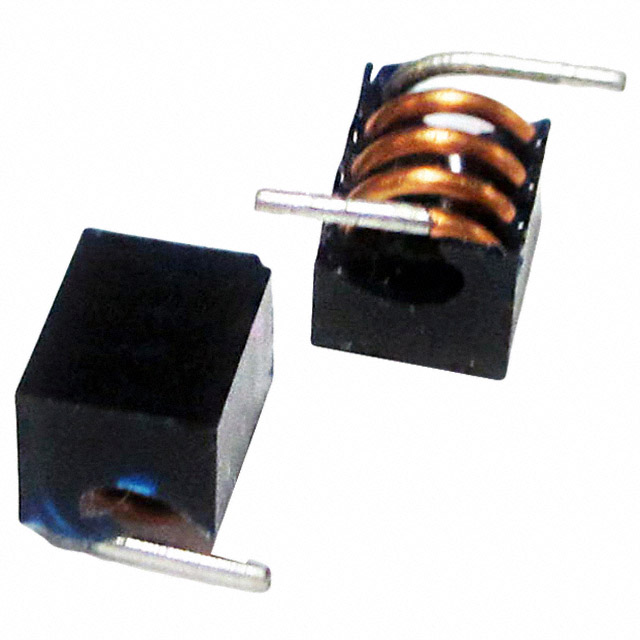

| Series | AIAC-1512C |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 2.5 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.8mOhm Max |
| Q @ Freq | 145 @ 150MHz |
| Frequency - Self Resonant | 3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
