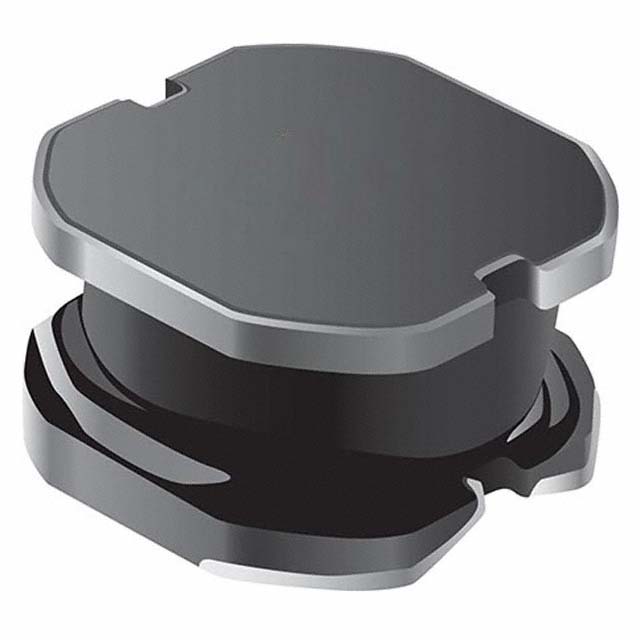

| Series | SRN1060 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 16 @ 2.52MHz |
| Frequency - Self Resonant | 6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.386" W (10.00mm x 9.80mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
