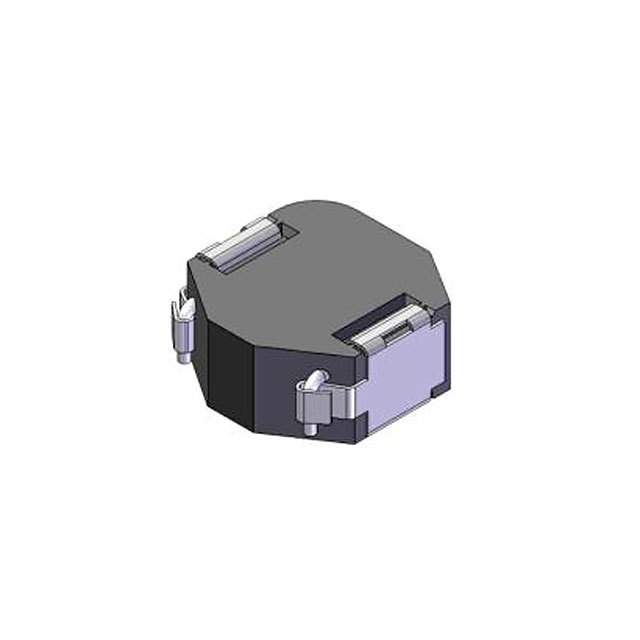

| Series | DFEH12060D |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Not For New Designs |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.6 A |
| Current - Saturation (Isat) | 7.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.496" W (13.00mm x 12.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
