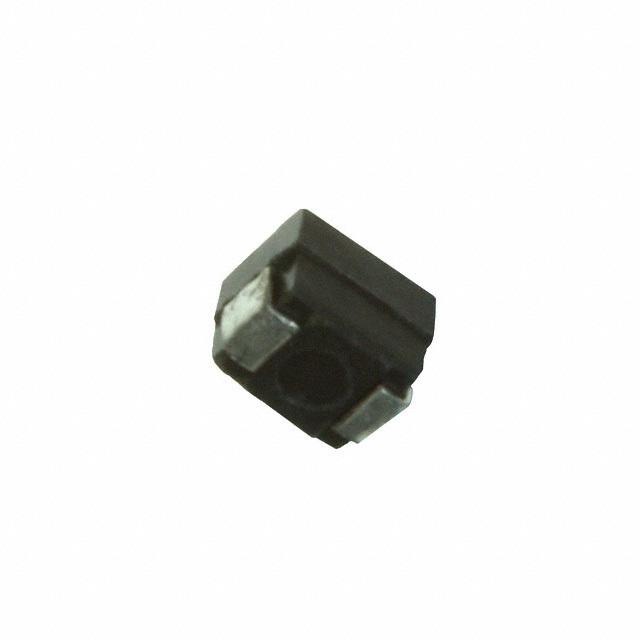

| Series | 1210R |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | - |
| Material - Core | Phenolic |
| Inductance | 10 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 966 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | 30 @ 50MHz |
| Frequency - Self Resonant | 2GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.128" L x 0.095" W (3.25mm x 2.42mm) |
| Height - Seated (Max) | 0.101" (2.57mm) |
