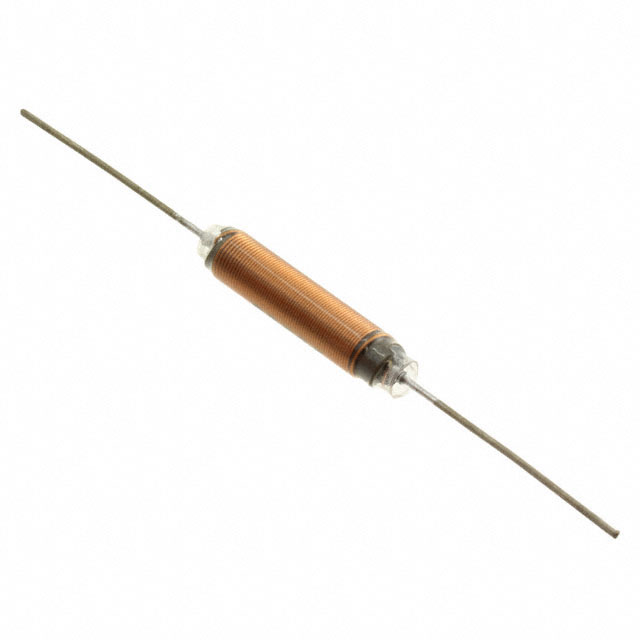

| Series | B82134 |
| Package | Tape & Reel (TR)Cut Tape (CT) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Iron |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.5Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) |
| Height - Seated (Max) | - |
