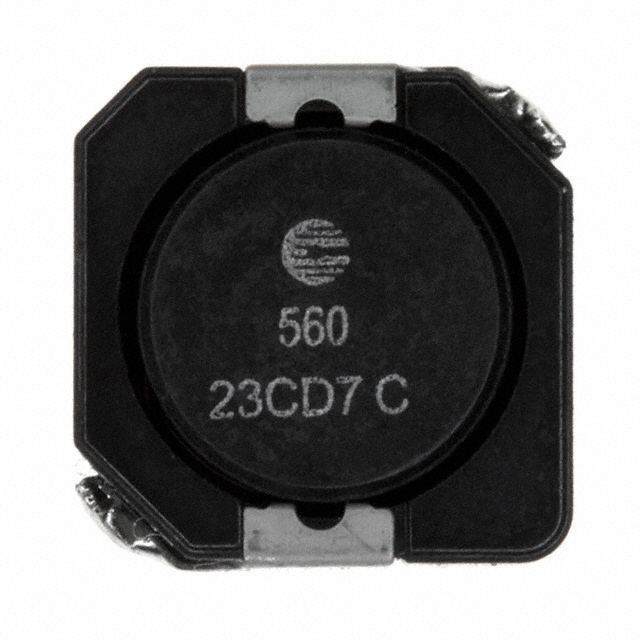

| Series | DR1050 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.96 A |
| Current - Saturation (Isat) | 1.94A |
| Shielding | Shielded |
| DC Resistance (DCR) | 123mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
