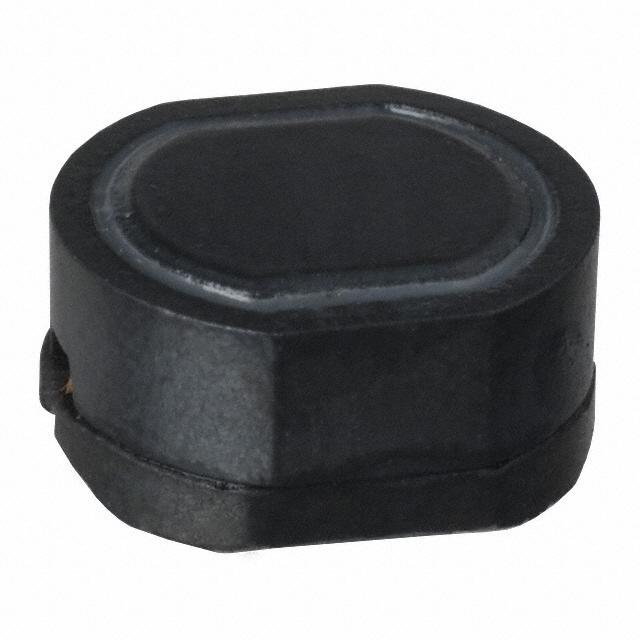

| Series | PM105SB |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 470 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 780mOhm Max |
| Q @ Freq | 27 @ 796kHz |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.390" L x 0.390" W (9.90mm x 9.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
