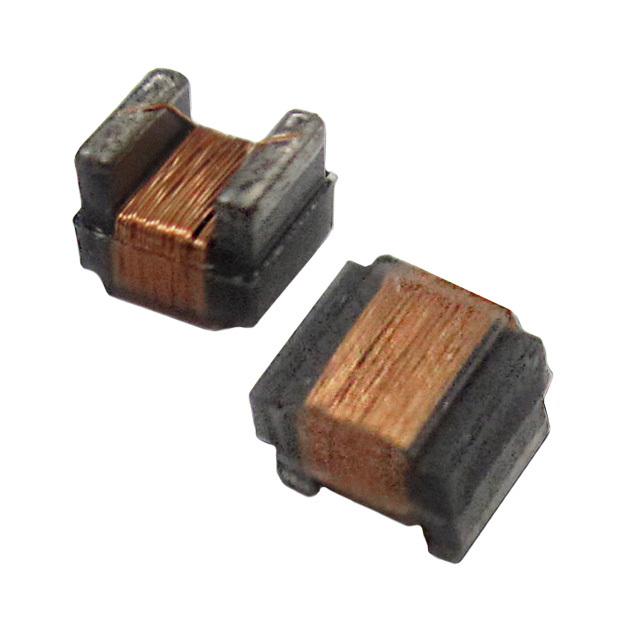

| Series | AISC-0805 |
| Package | Tape & Reel (TR)Cut Tape (CT) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 56 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 320mOhm Max |
| Q @ Freq | 55 @ 500MHz |
| Frequency - Self Resonant | 1.55GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.061" (1.55mm) |
