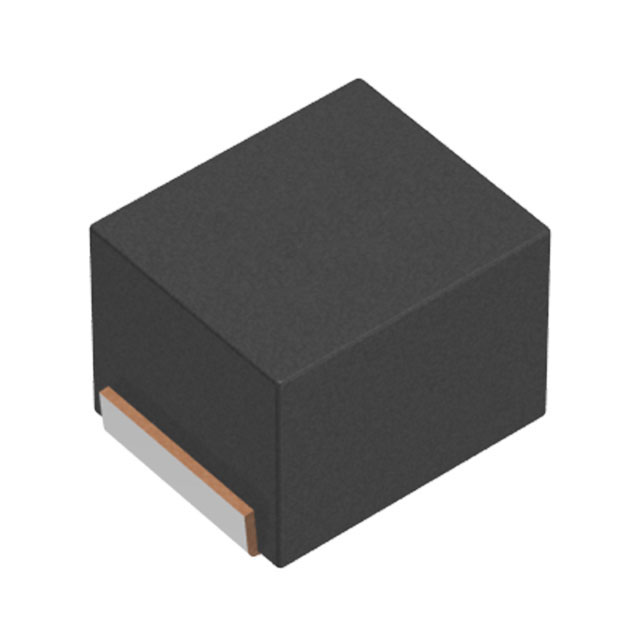

| Series | NLCV-PF |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Not For New Designs |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 468mOhm Max |
| Q @ Freq | 15 @ 2.52MHz |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
