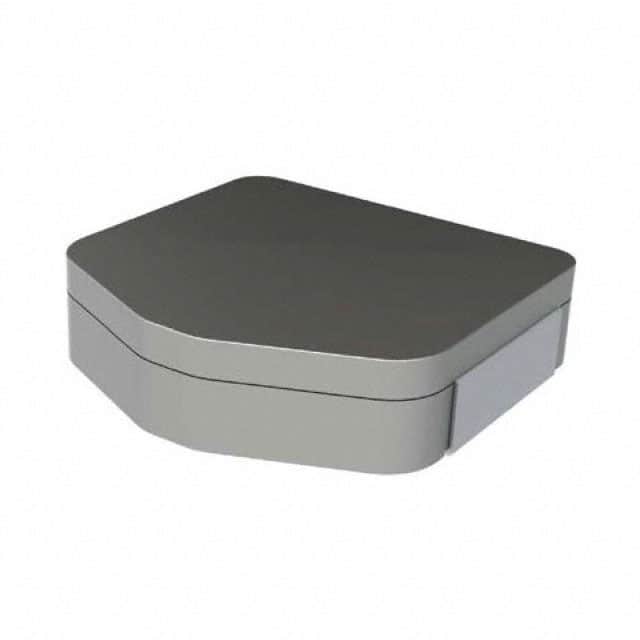

| Series | METCOM MPX |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal Composite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19.5 A |
| Current - Saturation (Isat) | 20.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3.7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.886" L x 0.866" W (22.50mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
