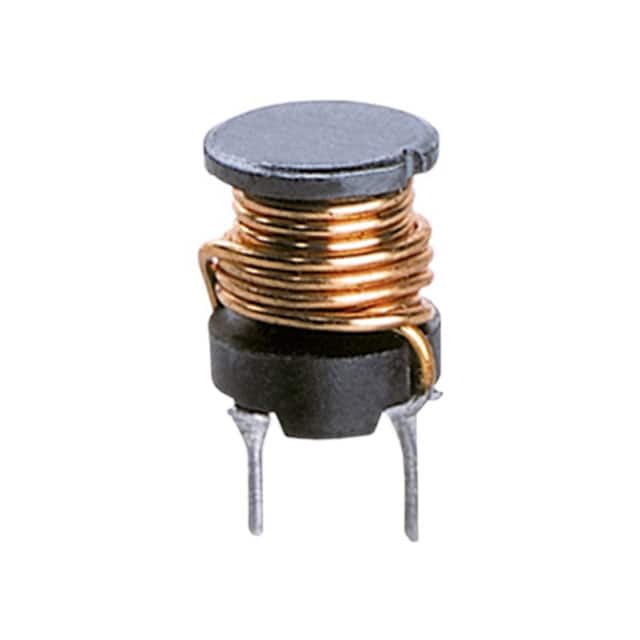

| Series | WE-TI |
| Package | Tray |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | 160mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 24Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 520kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
