| Series | PM2110 |
| Package | Bulk |
| Part Status | Active |

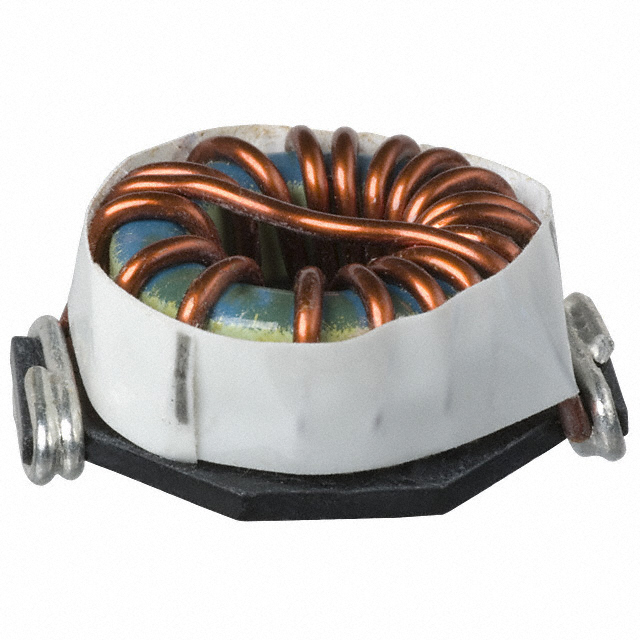

| Type | Toroidal |
| Material - Core | Iron |
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 66mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Height - Seated (Max) | 0.530" (13.46mm) |
