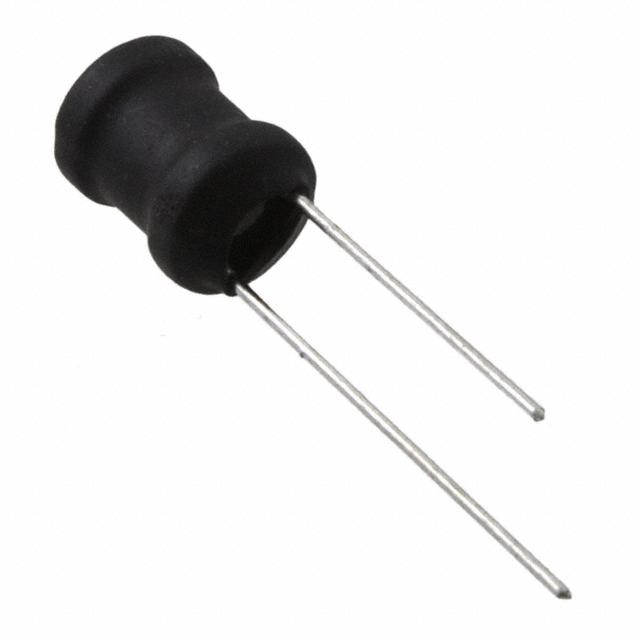

| Series | RLB9012 |
| Package | Bulk |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 18 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 53.6Ohm Max |
| Q @ Freq | 15 @ 79kHz |
| Frequency - Self Resonant | 230kHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
