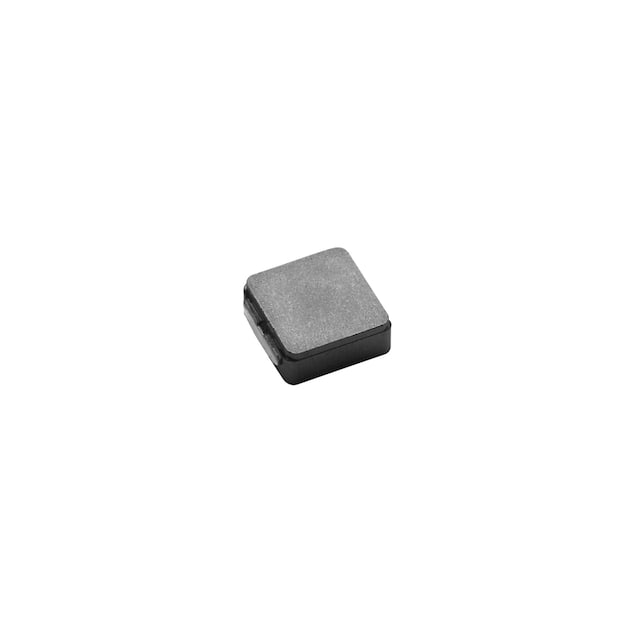

| Series | IHLP-2020BZ-5A |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.43 A |
| Current - Saturation (Isat) | 9.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 101.6MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
