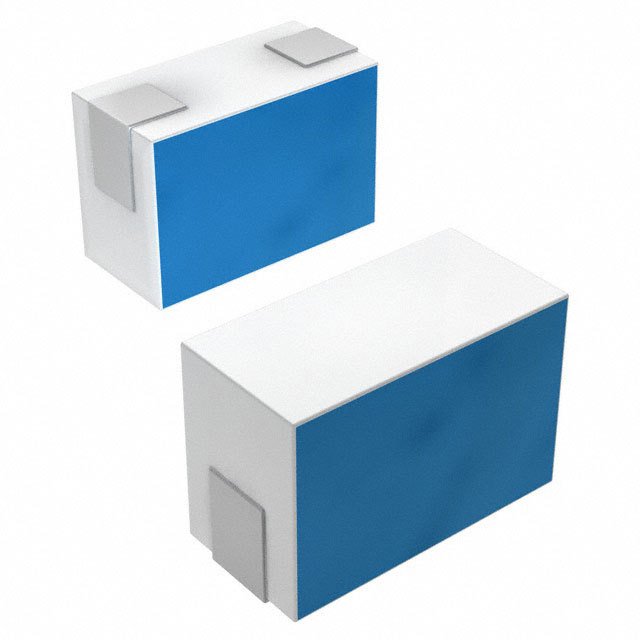

SeriesLQP03
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
TypeThick Film
Material - CoreNon-Magnetic
Inductance1.4 nH
Tolerance±0.2nH
Current Rating (Amps)700 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)100mOhm Max
Q @ Freq17 @ 500MHz
Frequency - Self Resonant16GHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test500 MHz
Features-
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device Package0201 (0603 Metric)
Size / Dimension0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)0.013" (0.33mm)
