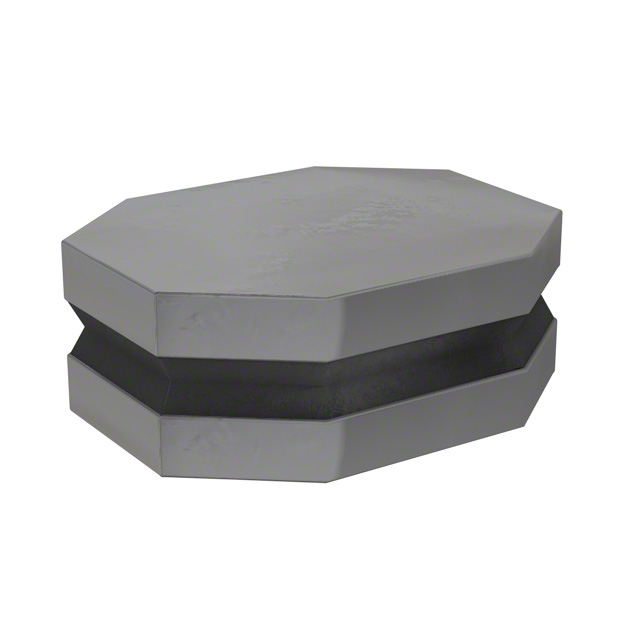

VLS252010ET-100M

SeriesVLS
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
TypeWirewound
Material - CoreFerrite
Inductance10 µH
Tolerance±20%
Current Rating (Amps)550 mA
Current - Saturation (Isat)560mA
ShieldingShielded
DC Resistance (DCR)854mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test1 MHz
Features-
Mounting TypeSurface Mount
Package / Case1008 (2520 Metric)
Supplier Device Package1008 (2520 Metric)
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)0.039" (1.00mm)
