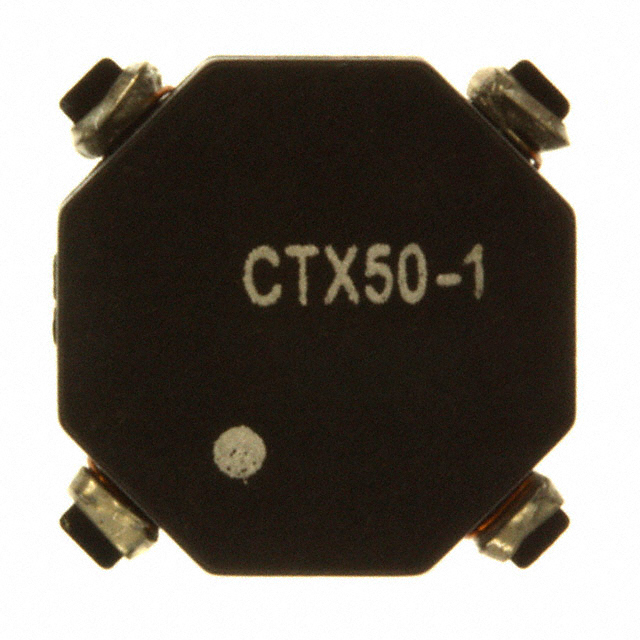

SeriesOCTA-PAC®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel50.63 µH
Inductance - Connected In Series202.5 µH
Tolerance±20%
Current Rating - Parallel640 mA
Current Rating - Series320 mA
Current Saturation - Parallel-
Current Saturation - Series-
DC Resistance (DCR) - Parallel365mOhm Max
DC Resistance (DCR) - Series1.461Ohm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.165" (4.19mm)
